JUAL MESIN KEMPA TABLET TIPE TDP-0 SINGLE PUNCH UNTUK LABORATORIUM TEKNOLOGI FARMASI SEKOLAH MENENGAH KEJURUAN FARMASI. READY STOK 1 UNIT LAGI

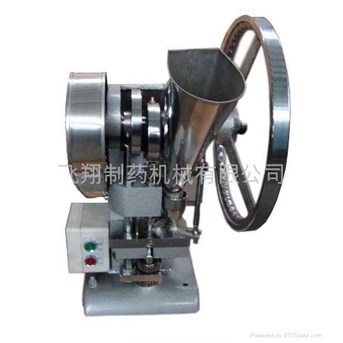

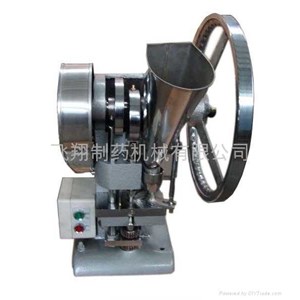

This machine is a small desktop type electric tablet press，and it also can be hand-operated, easy be operated and maintained.
This machine can press round or irregular tablets from various granular materials. It is
applicable to trial manufacture or batch produce in small scale in lab, hospital and science
research institutions etc.
Features:
1. Glossy finished stainless steel belt cover, as clean as a whistle, no pollution, meet the GMP standard.
2. Only a pair of punch and die can be erected on this machine, both filling depth
Of materials and thickness of tablet are adjustable.
3. Larger diameter tablets up to 25mm (TDP-6)
4. Press both round and irregular tablets
5. Power supply: AC,220V/50Hz single phase or customization.
6. Free with a pair of punch and die.
7. High precision of filling, lower consumption of materials, the minimum
Consumption of lab materials is just 200g.
8. Small volume, light weight, works smoothly and low noise.
Technical Parameters:
Model
TDP-0
TDP-1
TDP-2
TDP-3
Max.diameter of tablet(mm)
12
12
13
14
Max.thickness of tablet(mm)
6
6
6
6
Max.pressure(KN)
10
15
20
30
Max.depth of fill(mm)
11
11
11
11
Power supply
customization
Power(KW)
0.37
0.37
0.37
0.55
Overall size(mm)
530x340x570
530x340x570
530x360x570
680x440x740
Net weight(kg)
37
60
75
80
Capacity(pc/h)
6000
6000
6000
6000
Model
TDP-4
TDP-5
TDP-6
Max.diameter of tablet(mm)
15
22
25
Max.thickness of tablet(mm)
6
7
7.5
Max.pressure(KN)
40
50
60
Max.depth of fill(mm)
11
15
5
Power supply
customization
Power(KW)
0.55
0.75
1.1
Overall size(mm)
680x440x740
600x500x700
650x600x700
Net weight(kg)
95
150
165
Capacity(pc/h)
6000
3000
3000
